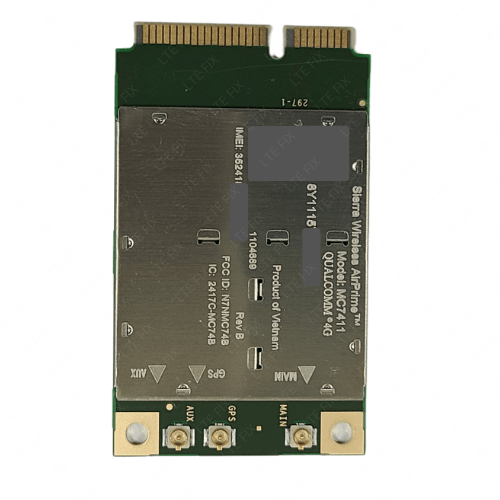

The Sierra Wireless AirPrime® MC7411 Module is a mini-PCIe module that provides LTE, LTE-Advanced, UMTS, and GNSS connectivity for routers, notebook, Ultrabook, tablet computers, and M2M applications over several radio frequency bands. The MC7411 supports LTE bands including LTE-LAA, CBRS, Bands 66/71 and FirstNet™ Band 14, enabling secure and reliable public safety communications.
This LTE-Advanced Cat-7 embedded module delivers up to 300Mbps peak downlink speed and 150Mbps peak uplink speed and automatic fallbacks to 3G networks. It has integrated GNSS receiver (GPS, GLONASS, Beidou, and Galileo satellite systems supported).
The AirPrime® MC7411 embedded module is ideal for public safety, industrial M2M and mobile computing solutions, delivering high speed connectivity while supporting 24 worldwide LTE bands, including LTE-LAA and CBRS. The modem supports LTE bands targeted for global deployment with approvals from multiple NAM, EMEA, and APAC carriers.
Based on the mini-PCI Express standard with USB 2.0 and USB 3.0 interfaces, the MC7411 module offers an easy upgrade path to new network technologies and global access to LTE-Advanced high speed cellular networks.
We also offer this cellular module in an M.2 form factor: The Sierra Wireless EM7411 CAT-7 LTE-Advanced Modem
NOTE: This is a mini-PCIe form card and requires U.FL Pigtails.
NOTICE: Modems can be troublesome when upgrading its firmware. Caution should be exercised when upgrading modem firmware. We will not accept return of a modem that has been bricked or otherwise altered or damaged.
IMPORTANT: Exercise extreme caution while installing U.FL connectors to the modem antenna ports. The ports are delicate and easily damaged. Assure that the U.FL connector is perfectly centered, level and aligned with the modem port. The U.FL connector will then snap into place using minimum pressure. Do not apply excessive force. A damaged modem connector port is not covered under warranty.
NOT RECOMMENDED for use with the M2M Dual-Q H721 due to the router’s high rate of modem burn outs and failures. We will warranty NO modems that are used in the M2M Dual SIM H721 router–whatever its branding.
It is strongly recommended to invest in a quality power strip surge protector (i.e., APC, Belkin,…) to use behind a router and/or electronic equipment. This will help protect against Transients (momentary spikes/surges in voltage or current) that can be detrimental to expensive equipment. Transient damage to modems are not covered under warranty. Protect your equipment. We have also observed, in some cases, that removing power from your router by pulling the barrel plug out of the router case, instead of pulling the wall adapter from the wall power outlet, has been suspected to damage high performing modems. Our best practice is to always power down the router first through the “System Stop” menu option and then unplug the router power supply from the source of power; at the wall power outlet. We are not responsible for modems or routers damaged by power issues from the customers actions or location.
Antenna Interface: IPEX U.FL
Interface: SIM card, USB 3.0, USB 2.0
Form Factor: Mini-PCIe 3042
Technology: LTE – CAT 7
Max peak DL Speed: 300 Mbps
Max peak UL Speed: 150 Mbps
Operating Temperature Range: -30 °C – 70 °C
Extended Operating Temperature Range: -40 °C – 85 °C
Carriers | Bands
PERMITTED CARRIER AGGREGATION BANDS:
