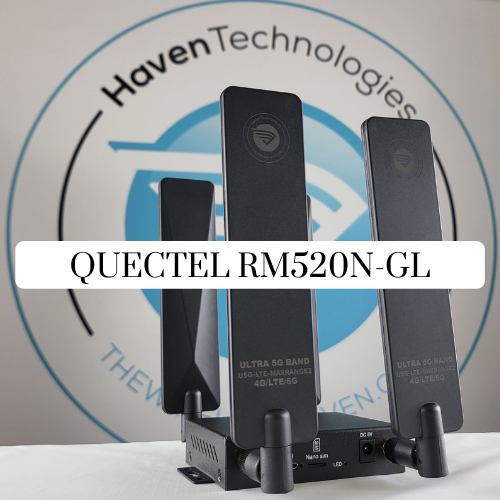

Quectel RM520N-GL x62 5G NR Sub-6 GHz Modem with Adapter Enclosure



Wireless Internet Modem – 5G – x62 Qualcomm – Quectel RM520N-GL

Top Speed: (LTE/5GSA/5GNSA)
Downlink
: 1.6Gbps/2.4Gbps/3.4Gbps
Uplink
: 200Mbps/900Mbps/550Mbps

LTE Bands supported per major US cellular carrier**

AT&T: 2, 4, 5, 12, 14, 17, 29, 30, 46, 66
Verizon: 1, 2, 4, 5, 13, 46, 48, 66
T-mobile: 2, 4, 5, 12, 25, 26, 41, 46, 66, 71

5G SA Bands Supported

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79

5G NSA Bands Supported

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79

All LTE Bands Supported

1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 34, 38, 39, 40, 41, 42, 43, 46, 48, 66, 71

Carrier Aggregation Support?
Yes: 5xCA

Cellular Antenna Ports:
4 (4×4 MIMO)

**Check for full cellular band support on the bands tab above.

NOTE: It is the customers sole responsibility to ensure that the cellular service is compatible with the above cellular modem. The Wireless Haven is not responsible, and will not rake returns, if the customer cannot find a cellular data plan to connect their modem to.
