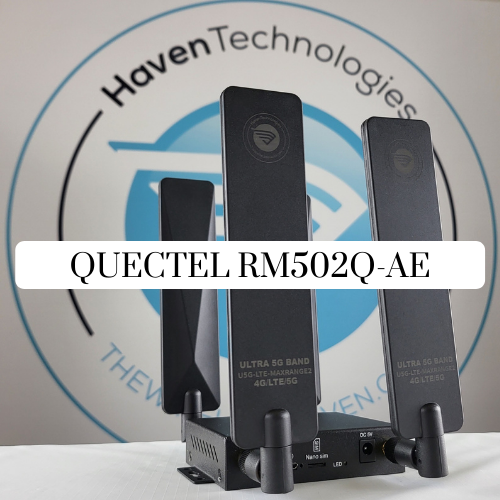

Quectel RM502Q-AE 5G NR Sub-6 GHz Modem Module with Adapter Enclosure



Wireless Internet Modem – 5G – Quectel RM502Q-AE

Top Speed: (LTE/5GSA/5GNSA)
Downlink
: 2.0Gbps/4.2Gbps/5.0Gbps
Uplink
: 200Mbps/450Mbps/650Mbps

LTE Bands supported per major US cellular carrier**

AT&T: 2, 4, 5, 12, 14, 17, 29, 30, 46, 66
Verizon: 1, 2, 4, 5, 13, 46, 48, 66
T-mobile: 2, 4, 5, 12, 25, 26, 41, 46, 66, 71

5G SA Bands Supported

n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48*, n66, n71, n77, n78, n79

5G NSA Bands Supported

n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48*, n66, n71, n77, n78, n79

Carrier Aggregation Support?
Yes: 5xCA

Cellular Antenna Ports:
4 (4×4 MIMO)

**Check for full cellular band support on the bands tab above.

NOTE: It is the customers sole responsibility to ensure that the cellular service is compatible with the above cellular modem. The Wireless Haven is not responsible, and will not rake returns, if the customer cannot find a cellular data plan to connect their modem to.

LEARN MORE ABOUT THESE COMPLETE LTE ROUTER KITS!
